Spare parts
To get correct spare parts specifications page, choose thrust
cylinder below.:
• Diaphragm 078 series
• Piston 078 series
• Diaphragm 1000 series (old types)
• Piston 1000 series (old types)
• Press stand

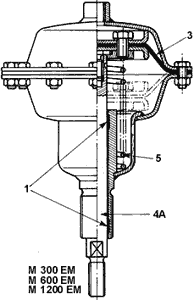

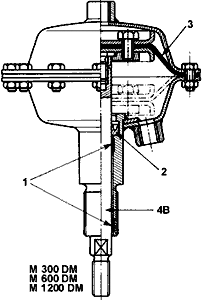

Diaphragm 1000 series (old types)
| Pos. |
Name |
Type/det. no.
M 300 EM/DM |
Type/det. no.
M 600 EM/DM |
Type/det. no.
M 1200 EM/DM |
| 1 |
Bearing bush |
991683401 |
990683402 |
991683403 |
| 2 |
Sealing for piston rod |
*991685502 |
*991685523 |
*991685522 |
| 3 |
Diaphragm |
99624101 |
99624201 |
99624301 |
| 4A |
Piston rod |
99643580 |
99643780 |
99643980 |
| 4B |
Piston rod |
99625001 |
99623401 |
99626201 |
| 5 |
Return spring |
**99625401 |
**99624701 |
**99626901 |
* For the MD type only.
** For the ME type only.
|
|
